Integrate with GitLab CI/CD

In this guide you will learn how to configure your GitLab CI/CD  runners to authenticate against Application Collection private registry. Then, we will walk through the migration of an existing workflow to use the new images.

Set up authentication

This is the first step required before running Application Collection images in your continuous integration / deployment pipelines. Registry authentication in GitLab CI/CD can be done in 3 ways :

• Defining DOCKER_AUTH_CONFIG CI/CD variable
• Setting DOCKER_AUTH_CONFIG environment variable in the runner’s config.toml file
• A config.json file in $HOME/.docker directory of the user running the process in the runner

If you want a company-wide configuration, you may opt for the second or third option. However, for simplicity’s sake we will showcase the first one.

First, generate the authentication string executing the following in a terminal:

printf "<service_account_username>:<service_account_secret>" | openssl base64 -A

Then, the DOCKER_AUTH_CONFIG value will be as follows:

{
  "auths": {
    "dp.apps.rancher.io": {
      "auth": "(Base64 content from above)"
    }
  }
}

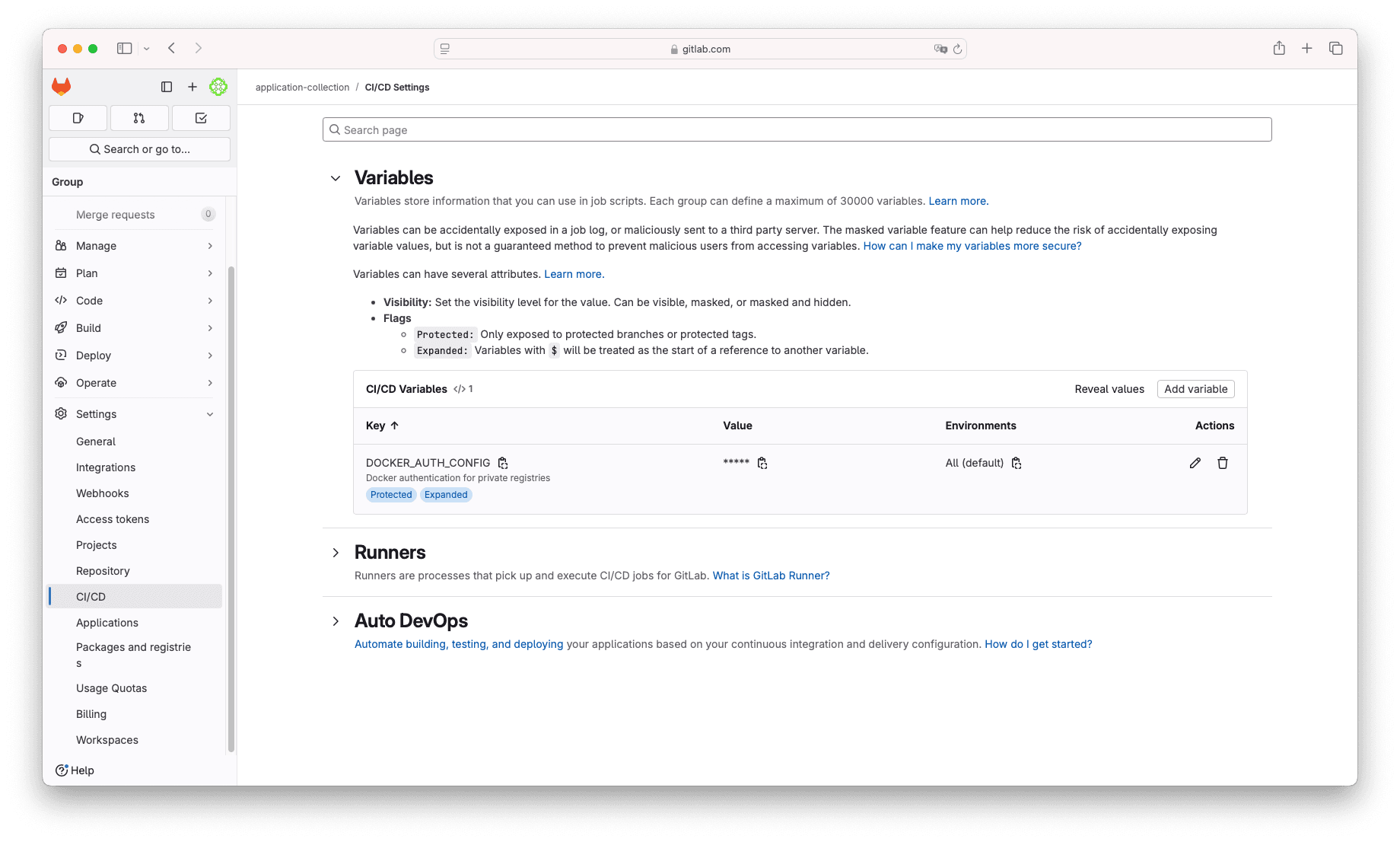

Go to your project or repository Settings → CI/CD and click on the Variables dropdown, now click the button Add variable. On the new form, select:

• Key: DOCKER_AUTH_CONFIG
• Value: The JSON from above

Notice that you can leave all other fields with their default values. At this point, you are ready to use Application Collection container images in your pipelines.

Use Application Collection container images

In order to make this section easier to follow, we will take GitLab’s example NPM with semantic-release . In this example we will create a basic NPM project with a basic CI/CD pipeline that performs a release on every commit pushed to the main branch. We won’t dive into NPM specifics or other pipeline details apart from the image migration.

This is the original pipeline we’re given:

default:
  image: node:latest
  before_script:
    - npm ci --cache .npm --prefer-offline
    - |
      {
        echo "@${CI_PROJECT_ROOT_NAMESPACE}:registry=${CI_API_V4_URL}/projects/${CI_PROJECT_ID}/packages/npm/"
        echo "${CI_API_V4_URL#https?}/projects/${CI_PROJECT_ID}/packages/npm/:_authToken=\${CI_JOB_TOKEN}"
      } | tee -a .npmrc
  cache:
    key: ${CI_COMMIT_REF_SLUG}
    paths:
      - .npm/

workflow:
  rules:
    - if: $CI_COMMIT_BRANCH

variables:
  NPM_TOKEN: ${CI_JOB_TOKEN}

stages:
  - release

publish:
  stage: release
  script:
    - npm run semantic-release
  rules:
    - if: $CI_COMMIT_BRANCH == $CI_DEFAULT_BRANCH

There’s a single stage (release), job (publish) and therefore image. Thus, we will only need to migrate node:latest. Before getting hands on the code again and performing the change, a quick note: The public Node.js docker image includes both the runtime and npm tool. In Application Collection we distinguish 2 flavors tailored for runtime and development. For NodeJs 22, you can find:

• Non-suffixed names: These are meant for runtime usage and contain exclusively the NodeJs binaries.
• -dev names: These are designed for development (and CI) purposes, including both NodeJs and npm binaries.

For this example, we will use the -dev flavor:

default:
  image: dp.apps.rancher.io/containers/nodejs:22-dev
  before_script:
    - npm ci --cache .npm --prefer-offline
    - |
      {
        echo "@${CI_PROJECT_ROOT_NAMESPACE}:registry=${CI_API_V4_URL}/projects/${CI_PROJECT_ID}/packages/npm/"
        echo "${CI_API_V4_URL#https?}/projects/${CI_PROJECT_ID}/packages/npm/:_authToken=\${CI_JOB_TOKEN}"
      } | tee -a .npmrc
  cache:
    key: ${CI_COMMIT_REF_SLUG}
    paths:
      - .npm/

workflow:
  rules:
    - if: $CI_COMMIT_BRANCH

variables:
  NPM_TOKEN: ${CI_JOB_TOKEN}

stages:
  - release

publish:
  stage: release
  script:
    - npm run semantic-release
  rules:
    - if: $CI_COMMIT_BRANCH == $CI_DEFAULT_BRANCH

🎉 Exactly, a single-line change!
